Building a local GitOps pipeline from zero Kubernetes knowledge

kind > Helm > ArgoCD > Prometheus/Grafana, wrapped around an existing Flask side project. Includes the part where a bad git push briefly broke a live Lambda function.

KubernetesHelm ArgoCDGitOps PrometheusGrafana GitHub ActionsAWS ECR

app repo chart repo

why

I already had a small Flask dashboard (aggregates GitHub Actions status across a couple of repos) running serverlessly on Lambda. Rather than touch a working deployment, I built a second, Kubernetes-based path for the same app as a learning project - the goal was a real local GitOps loop, not a tutorial copy-paste.

the pipeline

What actually happens on a deploy

pipeline.txt

git push ci-dashboard-k8s

> GitHub Actions: test, build image, push to private ECR

> checkout ci-dashboard-chart, bump values.yaml image.tag to commit SHA, commit, push

> ArgoCD polls the chart repo, detects the change, runs Helm

> new pods roll out; old pods retired only once new ones are healthy

> Prometheus scrapes /metrics via a ServiceMonitor; Grafana visualizes it

stack

Why each piece

kind

A real Kubernetes cluster running as Docker containers, for local dev. kubectl is just the client - kind is what actually builds the cluster it talks to.

Helm

Templated the Deployment/Service so environment-specific values (image tag, replicas, ports) live in one values.yaml instead of hand-copied YAML files - same problem I'd already solved once at work with a Jenkins shared library, just for manifests.

ArgoCD

The actual GitOps part. A controller inside the cluster watches Git and reconciles the cluster to match it, instead of me running helm upgrade by hand.

Prometheus + Grafana

Infra metrics (CPU/memory per pod) came free with zero app changes. App metrics needed instrumenting Flask with prometheus-flask-exporter and a ServiceMonitor.

proof

Self-healing, verified live

Two tests, not just a demo claim:

Manual drift: scaled the deployment down by hand with kubectl scale - ArgoCD reverted it within seconds (selfHeal: true).
Git as source of truth: changed replicaCount in values.yaml, committed, pushed - zero kubectl/helm commands run - new pod appeared within ArgoCD's ~3 min poll interval.

observability

Metrics that actually mean something

Infra dashboards came bundled with kube-prometheus-stack - real per-pod CPU/memory, zero app changes:

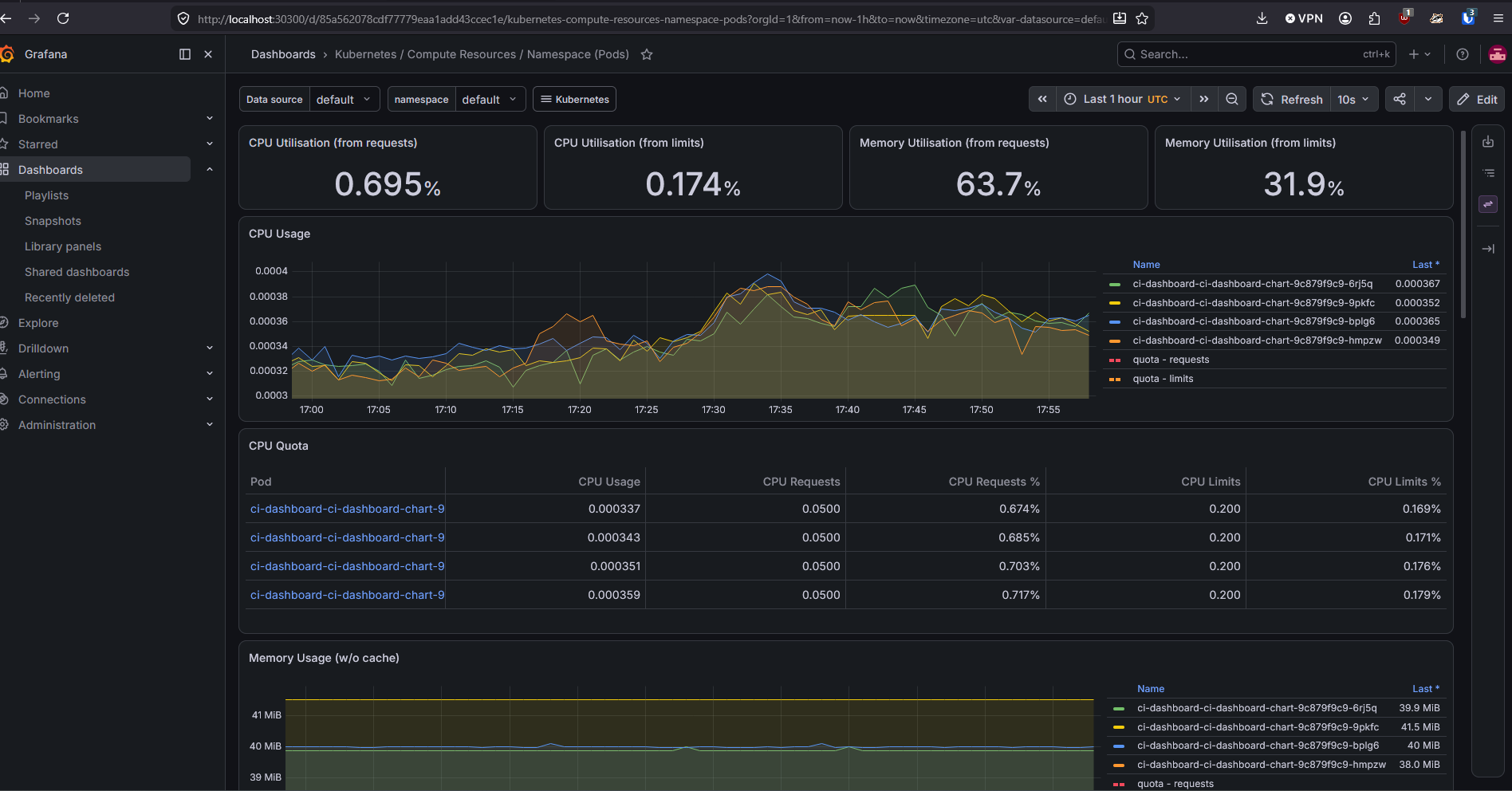

Grafana dashboard showing live CPU and memory usage for the ci-dashboard pods — Kubernetes / Compute Resources / Namespace (Pods) - live, real pod names.

App-level metrics needed real instrumentation - prometheus-flask-exporter exposing /metrics, and a ServiceMonitor so Prometheus actually discovers it:

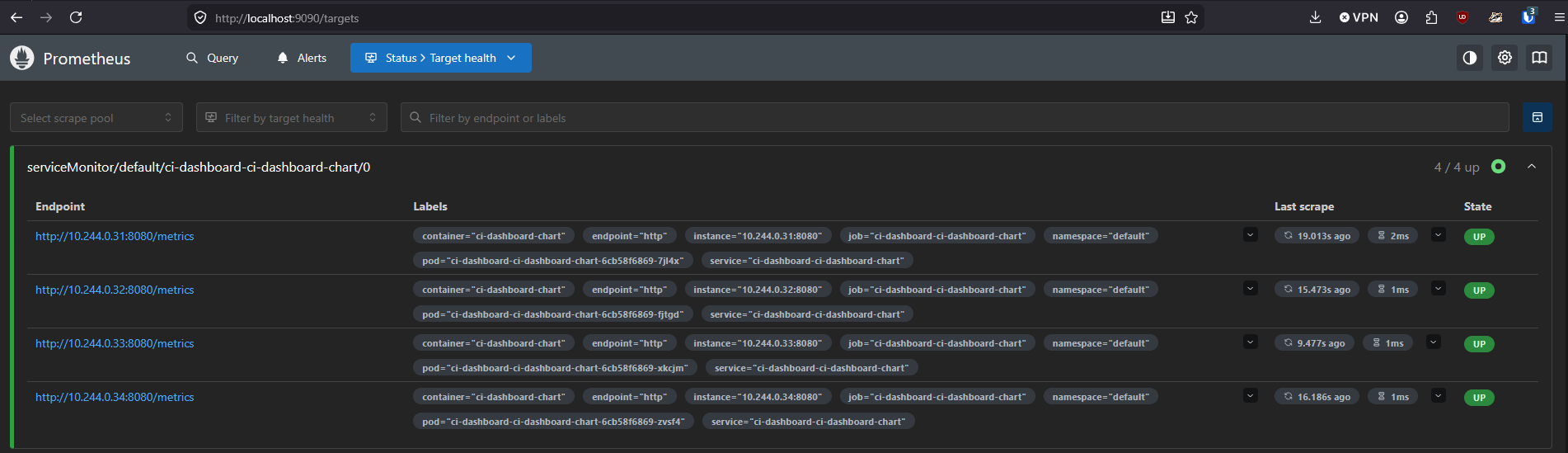

Prometheus targets page showing all four app pods as UP and being scraped — All 4 replicas discovered and scraped independently - no manual target list.

the incident

Ten minutes of broken production

Splitting the Kubernetes version into its own repo went wrong in an avoidable way: the local folder I ran git init in was already a clone with origin pointed at the original Lambda repo. I renamed a branch, pushed, and the gunicorn-based code - which has no lambda_handler - landed straight on that repo's main, which has a working GitHub Actions workflow that deploys to Lambda on every push.

incident timeline

1. Bad push lands on the Lambda repo's main

2. Deploy workflow fires, updates the live Lambda function

3. Workflow's own health-check step fails: curl > 503

4. Caught within minutes via the failing CI step, not a user report

5. git revert, re-deployed, confirmed via the same health check

Root cause: never ran git remote -v before assuming a folder was a fresh, unconnected repo. That's now a checked step before any first push, permanently.

gotcha

Private registries don't work the way you'd hope

Everything worked fine right up until the pipeline pushed to a private ECR repo instead of loading images straight into kind's local store. Kubernetes needs an explicit imagePullSecret to authenticate - and that secret is built from a short-lived AWS token (~12h), not a permanent credential. Rather than refresh it by hand forever, I wrote a small in-cluster CronJob with its own minimal-permission IAM user to refresh it every 6 hours - a good excuse to actually learn Kubernetes RBAC (ServiceAccount + Role + RoleBinding) instead of copy-pasting a secret command.

takeaways

What I'd tell someone starting the same thing

kubectl describe pod and kubectl logs before anything else - nearly every failure here was explainable from one of those two.
Test the container locally with plain docker run before it touches Kubernetes at all. Every image-level bug is faster to catch there than through a full CI > ECR > ArgoCD round trip.
helm template before helm install/upgrade - a free dry-run that catches YAML indentation mistakes before they hit a real cluster.
Check git remote -v before the first push in any "new" local repo. Obvious in hindsight.
